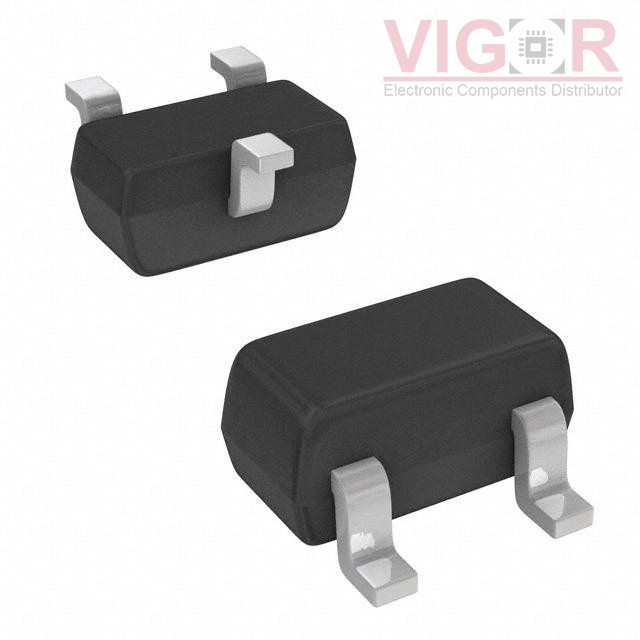

BAW56T-TP

Part No :: BAW56T-TP

Manufacturer: Micro Commercial Components (MCC)

VIGOR # :: 2944719

Description: DIODE ARRAY GP 85V 75MA SOT523

Catalog: Diodes - Rectifiers - Arrays

DataSheet: BAW56T-TP PDF

Country of origin: -

Date code: -

BAW56T-TP Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Diode Configuration:	1 Pair Common Anode
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	85 V
Current - Average Rectified (Io) (per Diode):	75mA (DC)
Voltage - Forward (Vf) (Max) @ If:	1 V @ 50 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	4 ns
Current - Reverse Leakage @ Vr:	2 µA @ 75 V
Operating Temperature - Junction:	-55°C ~ 150°C
Mounting Type:	Surface Mount
Package / Case:	SOT-523
Supplier Device Package:	SOT-523
