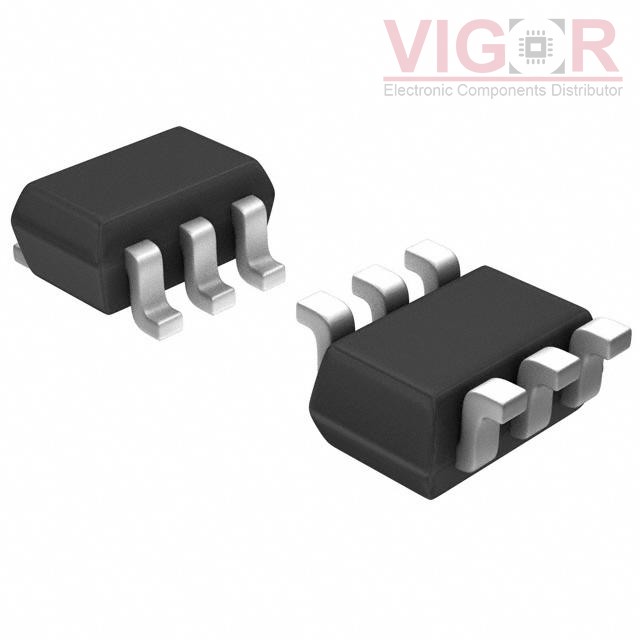

BAW56SH6327XTSA1

Part No :: BAW56SH6327XTSA1

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 2944725

Description: DIODE ARRAY GP 80V 200MA SOT363

Catalog: Diodes - Rectifiers - Arrays

DataSheet: BAW56SH6327XTSA1 PDF

Country of origin: -

Date code: -

BAW56SH6327XTSA1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Not For New Designs
Diode Configuration:	2 Pair Common Anode
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	80 V
Current - Average Rectified (Io) (per Diode):	200mA (DC)
Voltage - Forward (Vf) (Max) @ If:	1.25 V @ 150 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	4 ns
Current - Reverse Leakage @ Vr:	150 nA @ 70 V
Operating Temperature - Junction:	150°C (Max)
Mounting Type:	Surface Mount
Package / Case:	6-VSSOP, SC-88, SOT-363
Supplier Device Package:	PG-SOT363-6
