SBCT10100

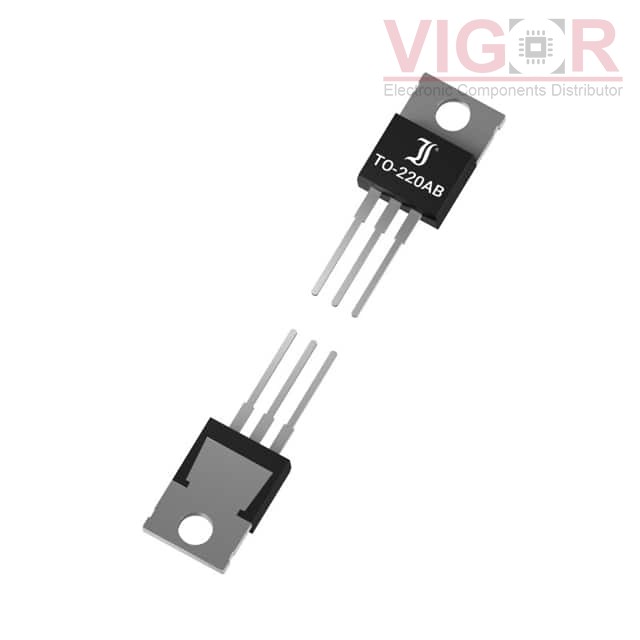

Image is for reference,
please contact us to get the real picture

Part No :: SBCT10100

Manufacturer: Diotec Semiconductor

Description: SCHOTTKY TO-220AB 100V 10A

Catalog: Diodes - Rectifiers - Arrays

DataSheet: SBCT10100 PDF

Availability: 4000 pieces

Unit Price: ~~$0.37530~~

Current price of SBCT10100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SBCT10100 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Diode Configuration:	1 Pair Common Cathode
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	100 V
Current - Average Rectified (Io) (per Diode):	5A
Voltage - Forward (Vf) (Max) @ If:	920 mV @ 10 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	300 µA @ 100 V
Operating Temperature - Junction:	-50°C ~ 150°C
Mounting Type:	Through Hole
Package / Case:	TO-220-3
Supplier Device Package:	TO-220AB
