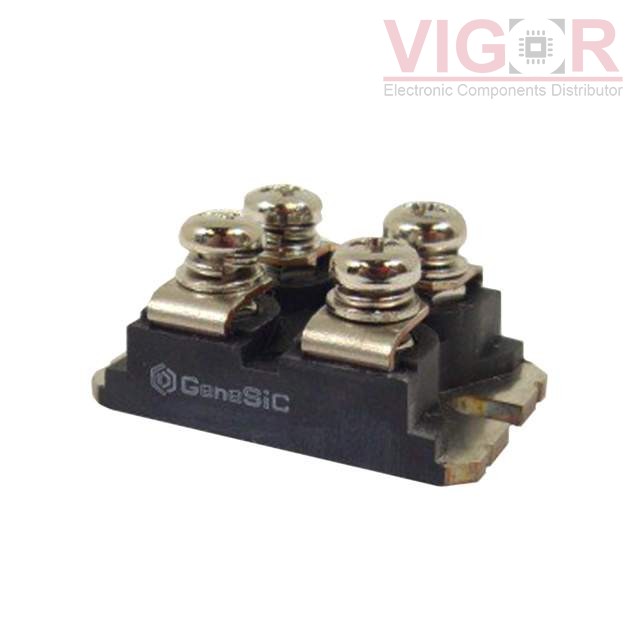

MBR2X120A100

Part No :: MBR2X120A100

Manufacturer: GeneSiC Semiconductor

VIGOR # :: 2945441

Description: DIODE SCHOTTKY 100V 120A SOT227

Catalog: Diodes - Rectifiers - Arrays

DataSheet: MBR2X120A100 PDF

Current price of MBR2X120A100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MBR2X120A100 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Diode Configuration:	2 Independent
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	100 V
Current - Average Rectified (Io) (per Diode):	120A
Voltage - Forward (Vf) (Max) @ If:	840 mV @ 120 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	1 mA @ 100 V
Operating Temperature - Junction:	-40°C ~ 150°C
Mounting Type:	Chassis Mount
Package / Case:	SOT-227-4, miniBLOC
Supplier Device Package:	SOT-227

Please confirm the specifications of the products when ordering.
