BAV199-AQ

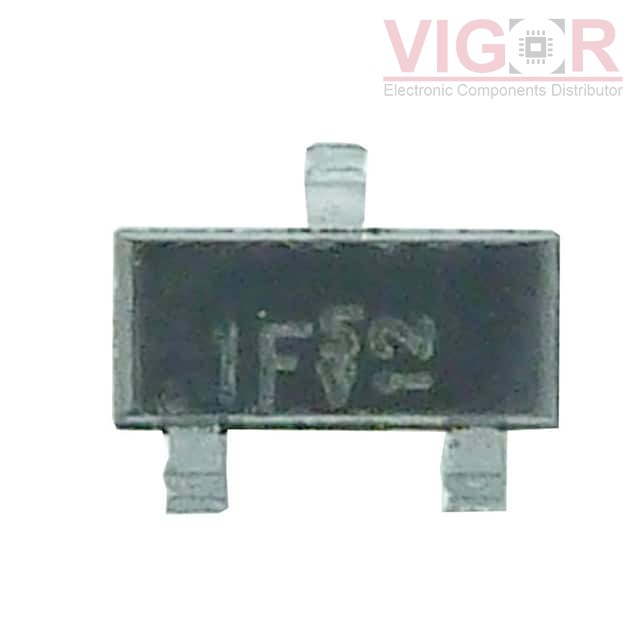

Image is for reference,
please contact us to get the real picture

Part No :: BAV199-AQ

Manufacturer: DComponents

Description: DIODE ARRAY GP 75V 215MA SOT23

Catalog: Diodes - Rectifiers - Arrays

DataSheet: BAV199-AQ PDF

Availability: 3010 pieces

Unit Price: ~~$0.20000~~

Current price of BAV199-AQ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BAV199-AQ Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Diode Configuration:	1 Pair Series Connection
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	75 V
Current - Average Rectified (Io) (per Diode):	215mA
Voltage - Forward (Vf) (Max) @ If:	1.25 V @ 150 mA
Speed:	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):	3 µs
Current - Reverse Leakage @ Vr:	5 nA @ 75 V
Operating Temperature - Junction:	-55°C ~ 150°C
Mounting Type:	Surface Mount
Package / Case:	TO-236-3, SC-59, SOT-23-3
Supplier Device Package:	SOT-23-3 (TO-236)
