MSCDC100A120D1PAG

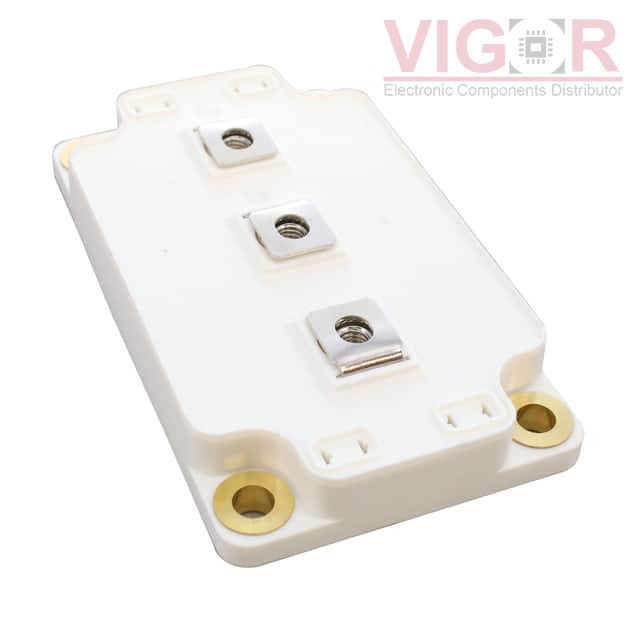

Image is for reference,
please contact us to get the real picture

Part No :: MSCDC100A120D1PAG

Manufacturer: Roving Networks / Microchip Technology

Description: PM-DIODE-SIC-SBD-D1P

Catalog: Diodes - Rectifiers - Arrays

DataSheet: MSCDC100A120D1PAG PDF

Availability: 0 pieces

Unit Price: ~~$149.49000~~

Current price of MSCDC100A120D1PAG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MSCDC100A120D1PAG Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Diode Configuration:	1 Pair Series Connection
Diode Type:	Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max):	1200 V
Current - Average Rectified (Io) (per Diode):	100A (DC)
Voltage - Forward (Vf) (Max) @ If:	1.8 V @ 100 A
Speed:	No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr):	0 ns
Current - Reverse Leakage @ Vr:	-
Operating Temperature - Junction:	-40°C ~ 175°C
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	D1P

Please confirm the specifications of the products when ordering.
