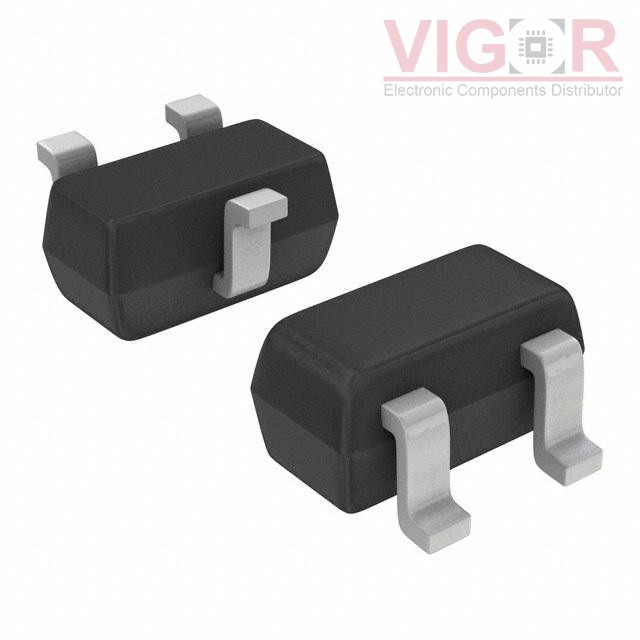

NSVBAV70TT1G

Part No :: NSVBAV70TT1G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 2946333

Description: DIODE ARRAY SW 100V 100MA SC75

Catalog: Diodes - Rectifiers - Arrays

DataSheet: NSVBAV70TT1G PDF

Country of origin: -

Date code: -

NSVBAV70TT1G Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Configuration:	1 Pair Common Cathode
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	100 V
Current - Average Rectified (Io) (per Diode):	100mA (DC)
Voltage - Forward (Vf) (Max) @ If:	1 V @ 50 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	6 ns
Current - Reverse Leakage @ Vr:	1 µA @ 100 V
Operating Temperature - Junction:	-55°C ~ 150°C
Mounting Type:	Surface Mount
Package / Case:	SC-75, SOT-416
Supplier Device Package:	SC-75
