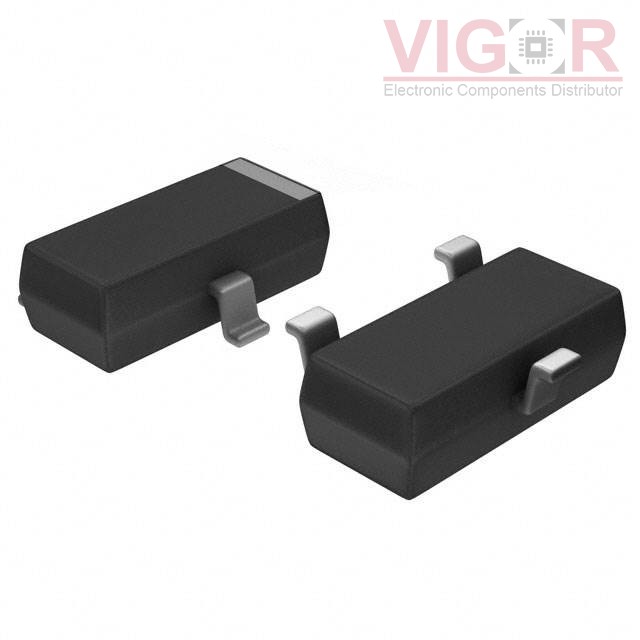

DB3X316N0L

Part No :: DB3X316N0L

Manufacturer: Panasonic

VIGOR # :: 2946531

Description: DIODE ARRAY SCHOTTKY 30V MINI3

Catalog: Diodes - Rectifiers - Arrays

DataSheet: DB3X316N0L PDF

Country of origin: -

Date code: -

DB3X316N0L Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Discontinued at Digi-Key
Diode Configuration:	1 Pair Common Cathode
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	30 V
Current - Average Rectified (Io) (per Diode):	100mA
Voltage - Forward (Vf) (Max) @ If:	550 mV @ 100 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	800 ps
Current - Reverse Leakage @ Vr:	15 µA @ 30 V
Operating Temperature - Junction:	125°C (Max)
Mounting Type:	Surface Mount
Package / Case:	TO-236-3, SC-59, SOT-23-3
Supplier Device Package:	Mini3-G3-B
