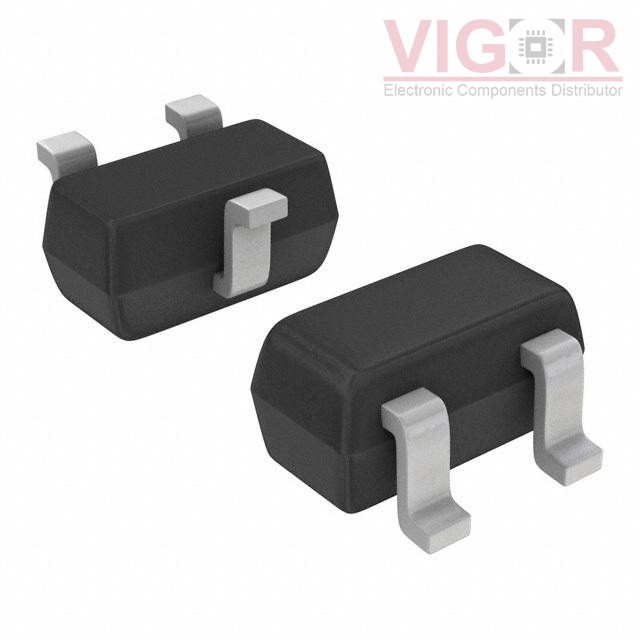

BAW56TT1

Part No :: BAW56TT1

Manufacturer: VIGOR

VIGOR # :: 2947026

Description: RECTIFIER DIODE

Catalog: Diodes - Rectifiers - Arrays

DataSheet: BAW56TT1 PDF

Country of origin: -

Date code: -

BAW56TT1 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Diode Configuration:	1 Pair Common Anode
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	70 V
Current - Average Rectified (Io) (per Diode):	200mA (DC)
Voltage - Forward (Vf) (Max) @ If:	1.25 V @ 150 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	6 ns
Current - Reverse Leakage @ Vr:	2.5 µA @ 70 V
Operating Temperature - Junction:	-55°C ~ 150°C
Mounting Type:	Surface Mount
Package / Case:	SC-75, SOT-416
Supplier Device Package:	SC-75, SOT-416
