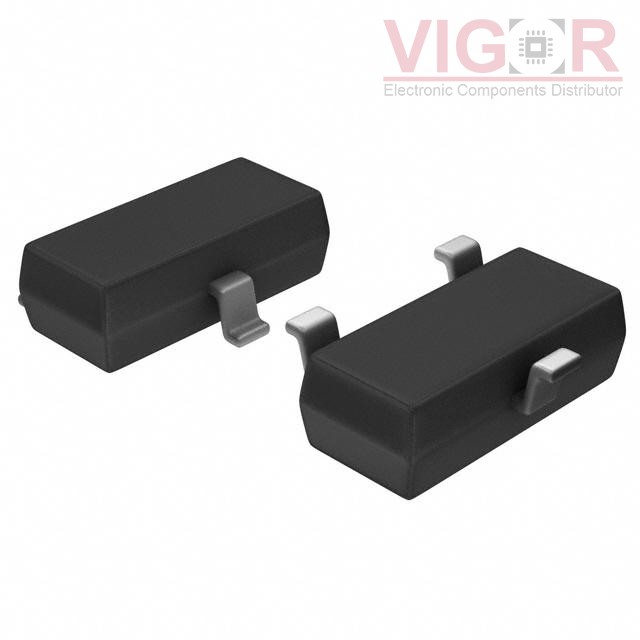

BAW56-HE3-08

Part No :: BAW56-HE3-08

Manufacturer: Vishay General Semiconductor – Diodes Division

VIGOR # :: 2947311

Description: DIODE ARRAY GP 70V 250MA SOT23

Catalog: Diodes - Rectifiers - Arrays

DataSheet: BAW56-HE3-08 PDF

Country of origin: -

Date code: -

BAW56-HE3-08 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Configuration:	1 Pair Common Anode
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	70 V
Current - Average Rectified (Io) (per Diode):	250mA
Voltage - Forward (Vf) (Max) @ If:	1.25 V @ 150 mA
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	6 ns
Current - Reverse Leakage @ Vr:	2.5 mA @ 70 V
Operating Temperature - Junction:	150°C (Max)
Mounting Type:	Surface Mount
Package / Case:	TO-236-3, SC-59, SOT-23-3
Supplier Device Package:	SOT-23
