DSA20C100PN

Part No :: DSA20C100PN

Manufacturer: Wickmann / Littelfuse

VIGOR # :: 2947475

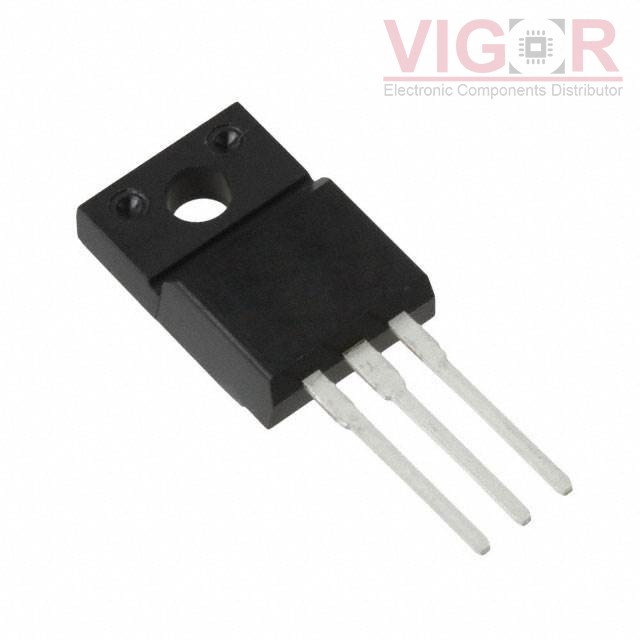

Description: DIODE ARRAY SCHOTTKY 100V TO220F

Catalog: Diodes - Rectifiers - Arrays

DataSheet: DSA20C100PN PDF

Country of origin: -

Date code: -

DSA20C100PN Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Diode Configuration:	1 Pair Common Cathode
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	100 V
Current - Average Rectified (Io) (per Diode):	10A
Voltage - Forward (Vf) (Max) @ If:	900 mV @ 10 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	200 nA @ 100 V
Operating Temperature - Junction:	-55°C ~ 175°C
Mounting Type:	Through Hole
Package / Case:	TO-220-3 Full Pack, Isolated Tab
Supplier Device Package:	TO-220ABFP
