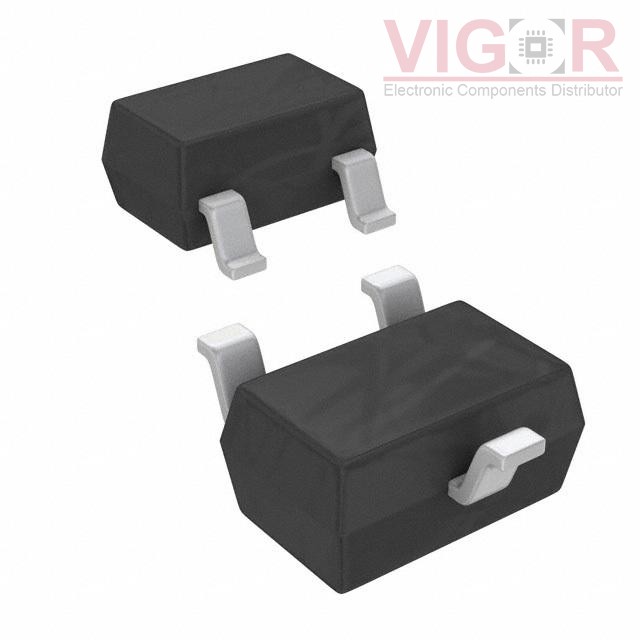

BAT54SWFILM

Part No :: BAT54SWFILM

Manufacturer: STMicroelectronics

VIGOR # :: 2947870

Description: DIODE ARRAY SCHOTTKY 40V SOT323

Catalog: Diodes - Rectifiers - Arrays

DataSheet: BAT54SWFILM PDF

Country of origin: -

Date code: -

BAT54SWFILM Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Configuration:	1 Pair Series Connection
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	40 V
Current - Average Rectified (Io) (per Diode):	300mA (DC)
Voltage - Forward (Vf) (Max) @ If:	900 mV @ 100 mA
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	5 ns
Current - Reverse Leakage @ Vr:	1 µA @ 30 V
Operating Temperature - Junction:	-40°C ~ 150°C
Mounting Type:	Surface Mount
Package / Case:	SC-70, SOT-323
Supplier Device Package:	SOT-323
