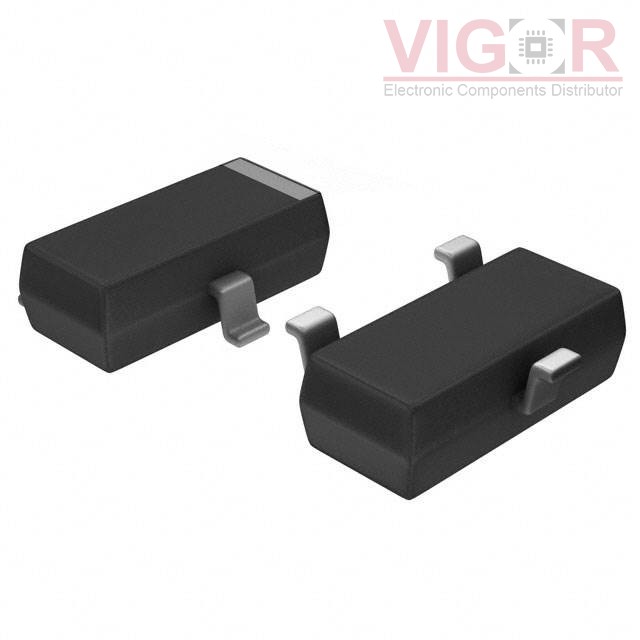

BAT54A

Product image
Product thumb
Part No :

BAT54A

Manufacturer
VIGOR
VIGOR # :

2949003

Description
RECTIFIER DIODE
Catalog
Diodes - Rectifiers - Arrays
DataSheet
BAT54A PDF
Country of origin
-
Date code
-
ads
BAT54A Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Diode Configuration:1 Pair Common Anode
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):30 V
Current - Average Rectified (Io) (per Diode):200mA
Voltage - Forward (Vf) (Max) @ If:800 mV @ 100 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):5 ns
Current - Reverse Leakage @ Vr:2 µA @ 25 V
Operating Temperature - Junction:-55°C ~ 150°C
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:SOT-23-3 (TO-236)
