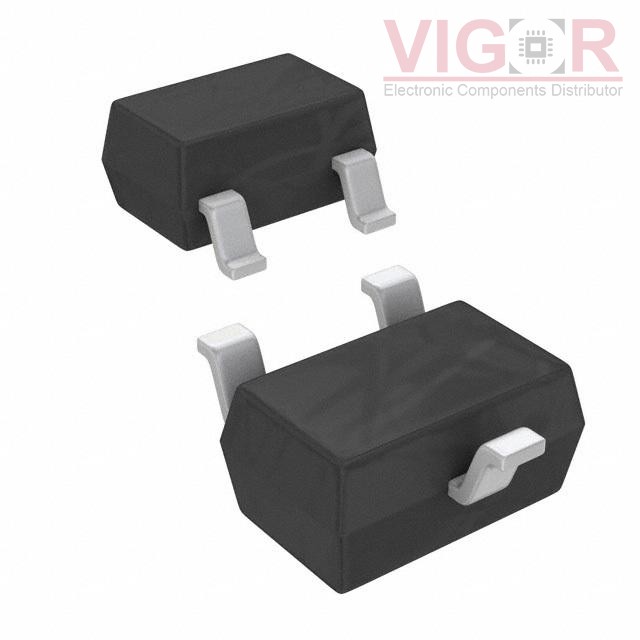

BAT54SW-7-G

Part No :: BAT54SW-7-G

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 4602799

Description: DIODE SCHOTTKY SOT323

Catalog: Diodes - Rectifiers - Arrays

DataSheet: BAT54SW-7-G PDF

Country of origin: -

Date code: -

BAT54SW-7-G Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Diode Configuration:	1 Pair Series Connection
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	30 V
Current - Average Rectified (Io) (per Diode):	200mA (DC)
Voltage - Forward (Vf) (Max) @ If:	1 V @ 100 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	5 ns
Current - Reverse Leakage @ Vr:	2 µA @ 25 V
Operating Temperature - Junction:	-65°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	SC-70, SOT-323
Supplier Device Package:	SOT-323
