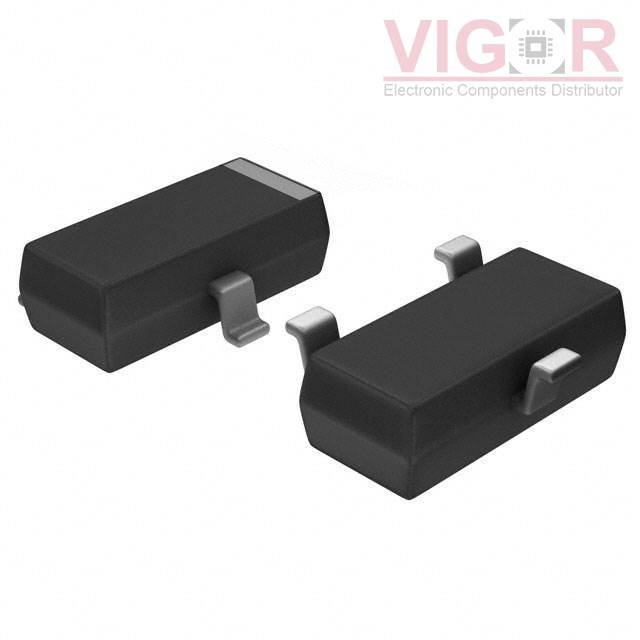

MMBD1505

Part No :: MMBD1505

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4602882

Description: DIODE ARRAY GP 200V 200MA SOT23

Catalog: Diodes - Rectifiers - Arrays

DataSheet: MMBD1505 PDF

Country of origin: -

Date code: -

MMBD1505 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Diode Configuration:	1 Pair Common Anode
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	200 V
Current - Average Rectified (Io) (per Diode):	200mA
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 200 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	10 nA @ 180 V
Operating Temperature - Junction:	150°C (Max)
Mounting Type:	Surface Mount
Package / Case:	TO-236-3, SC-59, SOT-23-3
Supplier Device Package:	SOT-23-3
