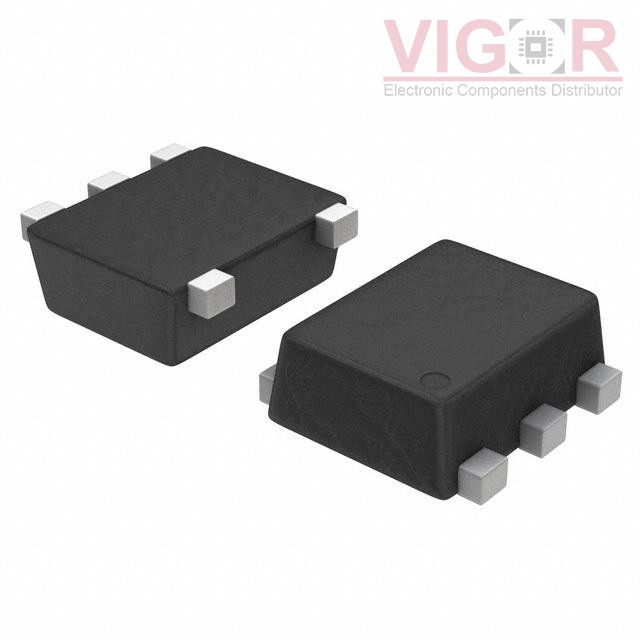

SBS822-S-TL-H

Part No :: SBS822-S-TL-H

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4605581

Description: DIODE ARRAY SCHOTTKY 20V 5MCPH

Catalog: Diodes - Rectifiers - Arrays

DataSheet: SBS822-S-TL-H PDF

Country of origin: -

Date code: -

SBS822-S-TL-H Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Diode Configuration:	2 Independent
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	20 V
Current - Average Rectified (Io) (per Diode):	1A
Voltage - Forward (Vf) (Max) @ If:	460 mV @ 1 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	10 ns
Current - Reverse Leakage @ Vr:	110 µA @ 10 V
Operating Temperature - Junction:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	6-SMD (5 Leads), Flat Lead
Supplier Device Package:	5-MCPH
