BAW156/ZLR

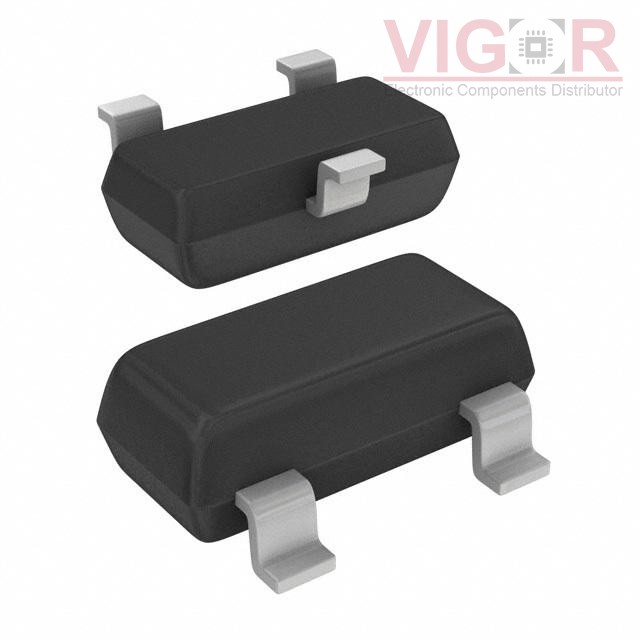

Part No :: BAW156/ZLR

Manufacturer: NXP Semiconductors

VIGOR # :: 4605777

Description: DIODE ARRAY GEN PURP 75V SOT23

Catalog: Diodes - Rectifiers - Arrays

DataSheet: BAW156/ZLR PDF

Country of origin: -

Date code: -

BAW156/ZLR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Diode Configuration:	1 Pair Common Anode
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	75 V
Current - Average Rectified (Io) (per Diode):	160mA (DC)
Voltage - Forward (Vf) (Max) @ If:	1.25 V @ 150 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	3 µs
Current - Reverse Leakage @ Vr:	5 nA @ 75 V
Operating Temperature - Junction:	150°C (Max)
Mounting Type:	Surface Mount
Package / Case:	TO-236-3, SC-59, SOT-23-3
Supplier Device Package:	TO-236AB (SOT23)
