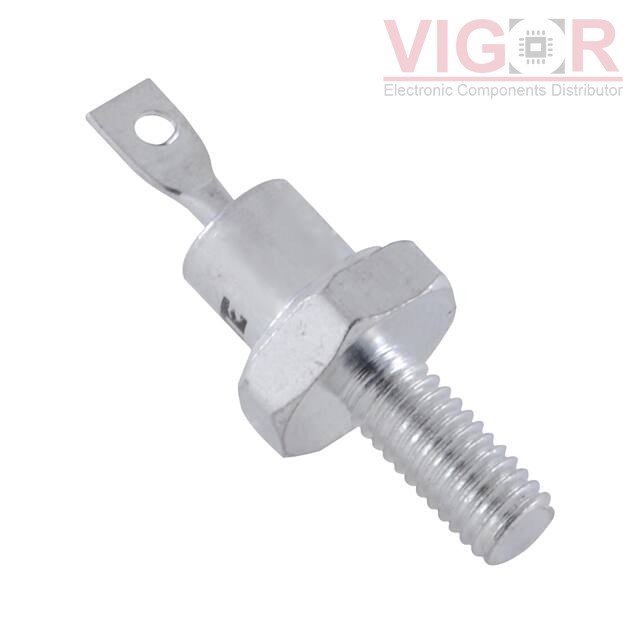

NTE5909

Part No :: NTE5909

Manufacturer: NTE Electronics, Inc.

Description: R-800PRV 16A ANODE CASE

Catalog: Diodes - Rectifiers - Single

DataSheet: NTE5909 PDF

Availability: 23 pieces

Unit Price: ~~$13.48000~~

Current price of NTE5909 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NTE5909 Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	800 V
Current - Average Rectified (Io):	16A
Voltage - Forward (Vf) (Max) @ If:	1.23 V @ 50 A
Speed:	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	12 mA @ 800 V
Capacitance @ Vr, F:	-
Mounting Type:	Stud Mount
Package / Case:	DO-203AA, DO-4, Stud
Supplier Device Package:	DO-4
Operating Temperature - Junction:	-65°C ~ 175°C

Please confirm the specifications of the products when ordering.
