NSR0230M2T5G

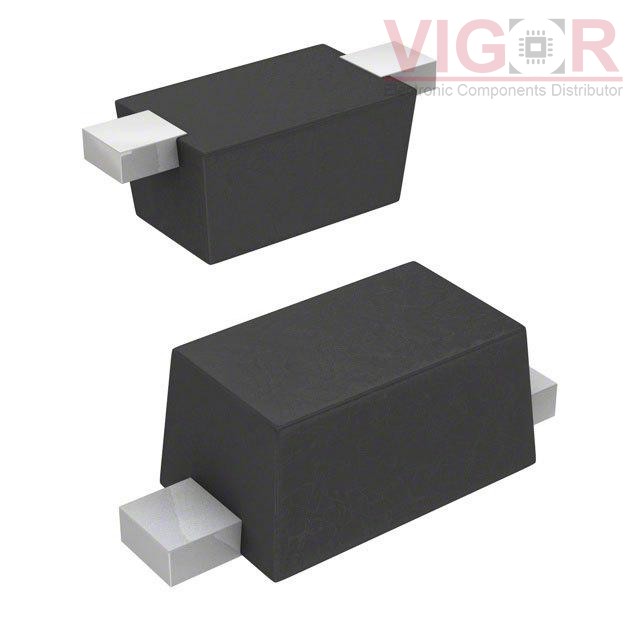

Image is for reference,
please contact us to get the real picture

Part No :: NSR0230M2T5G

Manufacturer: VIGOR

Description: RECTIFIER DIODE, SCHOTTKY, 0.2A,

Catalog: Diodes - Rectifiers - Single

DataSheet: NSR0230M2T5G PDF

Availability: 2479359 pieces

Unit Price: ~~$0.05000~~

Current price of NSR0230M2T5G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NSR0230M2T5G Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	30 V
Current - Average Rectified (Io):	200mA (DC)
Voltage - Forward (Vf) (Max) @ If:	500 mV @ 200 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	100 µA @ 30 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount
Package / Case:	SOD-723
Supplier Device Package:	SOD-723
Operating Temperature - Junction:	-55°C ~ 125°C
