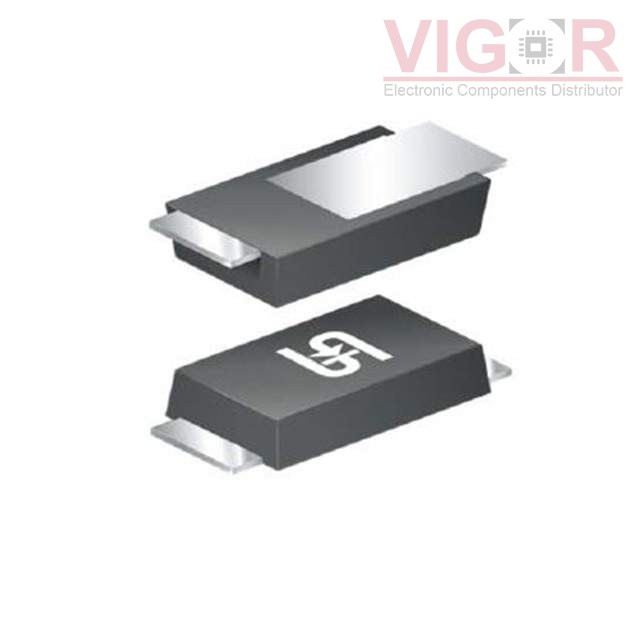

SS12LSHRVG

Part No :: SS12LSHRVG

Manufacturer: TSC (Taiwan Semiconductor)

VIGOR # :: 2920225

Description: DIODE SCHOTTKY 20V 1A SOD123HE

Catalog: Diodes - Rectifiers - Single

DataSheet: SS12LSHRVG PDF

Country of origin: -

Date code: -

SS12LSHRVG Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	20 V
Current - Average Rectified (Io):	1A
Voltage - Forward (Vf) (Max) @ If:	450 mV @ 1 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	400 µA @ 20 V
Capacitance @ Vr, F:	80pF @ 4V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	SOD-123H
Supplier Device Package:	SOD-123HE
Operating Temperature - Junction:	-55°C ~ 125°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1578

Shipped from

HK warehouse

Expected Shipping Date

Nov 07 - Nov 11 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.4200~~	~~$0.42~~
3000	~~$0.0738~~	~~$221.40~~
6000	~~$0.0672~~	~~$403.44~~
15000	~~$0.0607~~	~~$910.20~~
30000	~~$0.0574~~	~~$1 722.00~~
75000	~~$0.0541~~	~~$4 059.00~~

Current price of SS12LSHRVG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

MBRS130T3H

RECTIFIER DIODE

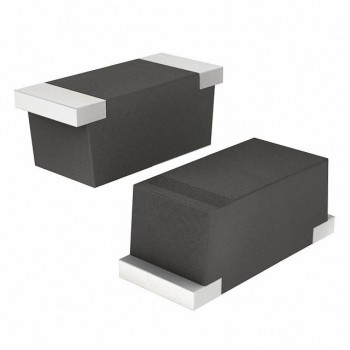

CGRM4007-HF
