BAV16S92-7

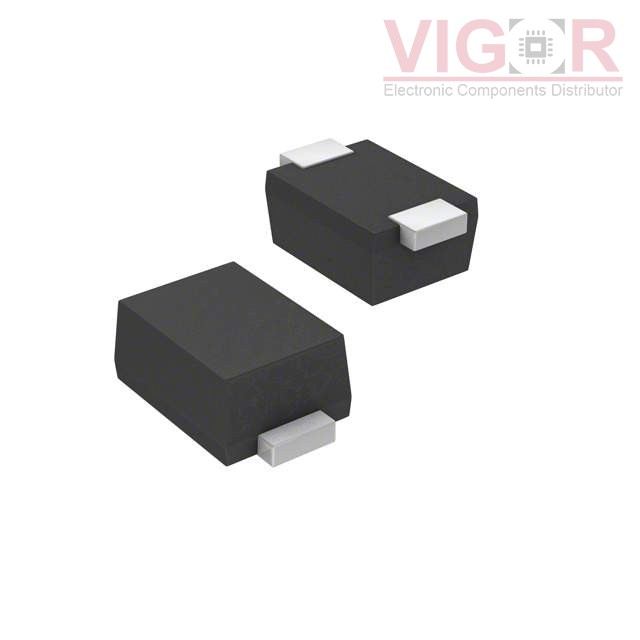

Image is for reference,
please contact us to get the real picture

Part No :: BAV16S92-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: DIODE GEN PURP 75V 150MA SOD923

Catalog: Diodes - Rectifiers - Single

DataSheet: BAV16S92-7 PDF

Availability: 8035 pieces

Unit Price: ~~$0.25000~~

Current price of BAV16S92-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BAV16S92-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	75 V
Current - Average Rectified (Io):	150mA
Voltage - Forward (Vf) (Max) @ If:	1.25 V @ 150 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	4 ns
Current - Reverse Leakage @ Vr:	1 µA @ 75 V
Capacitance @ Vr, F:	2pF @ 0V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	SOD-923
Supplier Device Package:	SOD-923
Operating Temperature - Junction:	-55°C ~ 150°C
