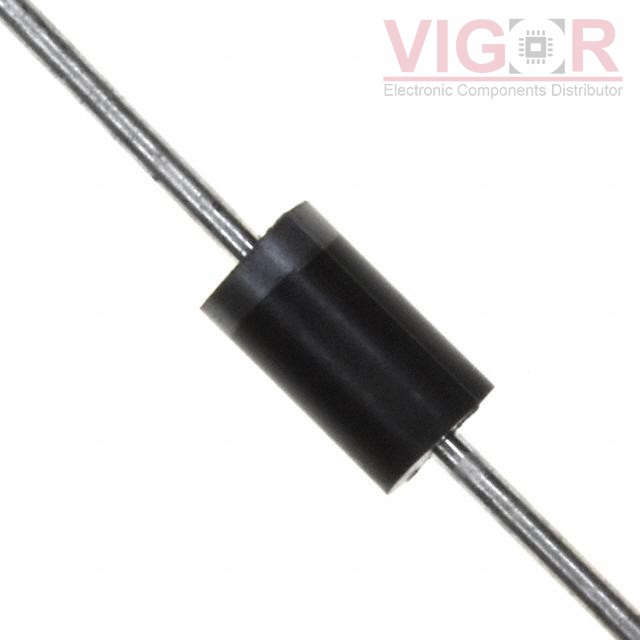

SB520-E3/54

Part No :: SB520-E3/54

Manufacturer: Vishay General Semiconductor – Diodes Division

VIGOR # :: 2922016

Description: DIODE SCHOTTKY 20V 5A DO201AD

Catalog: Diodes - Rectifiers - Single

DataSheet: SB520-E3/54 PDF

Country of origin: -

Date code: -

SB520-E3/54 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	20 V
Current - Average Rectified (Io):	5A
Voltage - Forward (Vf) (Max) @ If:	480 mV @ 5 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	500 µA @ 20 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	DO-201AD, Axial
Supplier Device Package:	DO-201AD
Operating Temperature - Junction:	-65°C ~ 150°C
