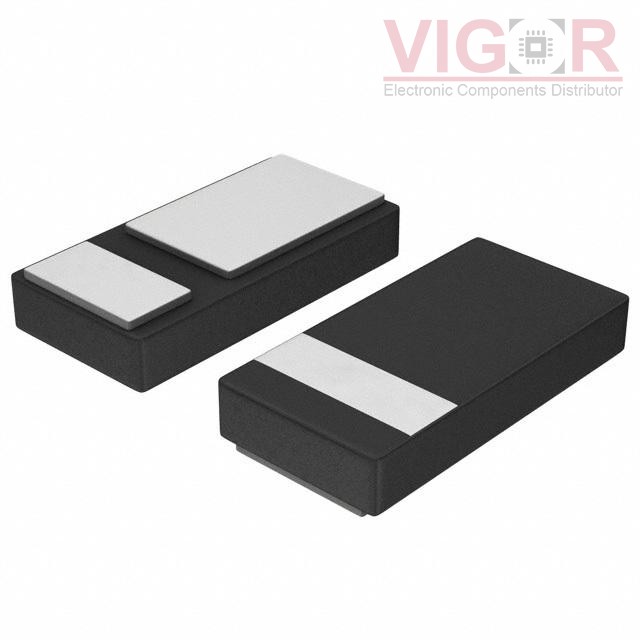

NSR05F20NXT5G

Part No :: NSR05F20NXT5G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 2922495

Description: DIODE SCHOTTKY 20V 500MA 2DSN

Catalog: Diodes - Rectifiers - Single

DataSheet: NSR05F20NXT5G PDF

Country of origin: -

Date code: -

NSR05F20NXT5G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	20 V
Current - Average Rectified (Io):	500mA (DC)
Voltage - Forward (Vf) (Max) @ If:	430 mV @ 500 mA
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	75 µA @ 20 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount
Package / Case:	2-XDFN
Supplier Device Package:	2-DSN (1x.60)
Operating Temperature - Junction:	150°C (Max)
