121NQ045-1

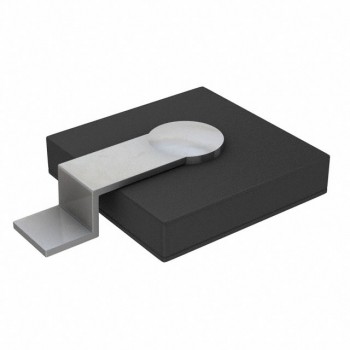

Image is for reference,
please contact us to get the real picture

Part No :: 121NQ045-1

Manufacturer: SMC Diode Solutions

Description: DIODE SCHOTTKY 45V 120A PRM1-1

Catalog: Diodes - Rectifiers - Single

DataSheet: 121NQ045-1 PDF

Availability: 0 pieces

Unit Price: ~~$23.59278~~

Current price of 121NQ045-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

121NQ045-1 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	45 V
Current - Average Rectified (Io):	120A
Voltage - Forward (Vf) (Max) @ If:	650 mV @ 120 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	10 mA @ 45 V
Capacitance @ Vr, F:	5200pF @ 5V, 1MHz
Mounting Type:	Chassis Mount
Package / Case:	HALF-PAK
Supplier Device Package:	PRM1-1 (Half Pak Module)
Operating Temperature - Junction:	-55°C ~ 150°C

Please confirm the specifications of the products when ordering.
