SDM2A40CSP-7B

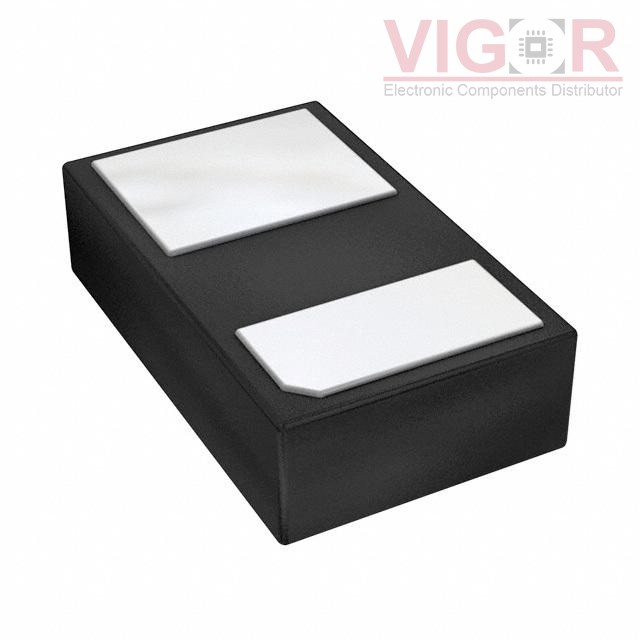

Product image
Product thumb
Part No :

SDM2A40CSP-7B

Manufacturer
Zetex Semiconductors (Diodes Inc.)
VIGOR # :

2926719

Description
SCHOTTKY RECTIFIER X3-WLB1608-2
Catalog
Diodes - Rectifiers - Single
DataSheet
SDM2A40CSP-7B PDF
Country of origin
-
Date code
-
ads
SDM2A40CSP-7B Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):40 V
Current - Average Rectified (Io):2A
Voltage - Forward (Vf) (Max) @ If:470 mV @ 1 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):14 ns
Current - Reverse Leakage @ Vr:100 µA @ 40 V
Capacitance @ Vr, F:81pF @ 5V, 1MHz
Mounting Type:Surface Mount
Package / Case:0603 (1608 Metric)
Supplier Device Package:X3-WLB1608-2
Operating Temperature - Junction:-55°C ~ 150°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
May 22 - May 26 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.0994 $0.10
10000 $0.0994 $994.00

Current price of SDM2A40CSP-7B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

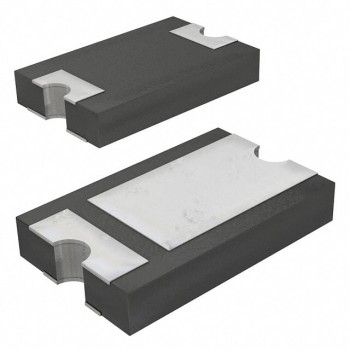

CDBZ5T30100-HF
