JAN1N4946

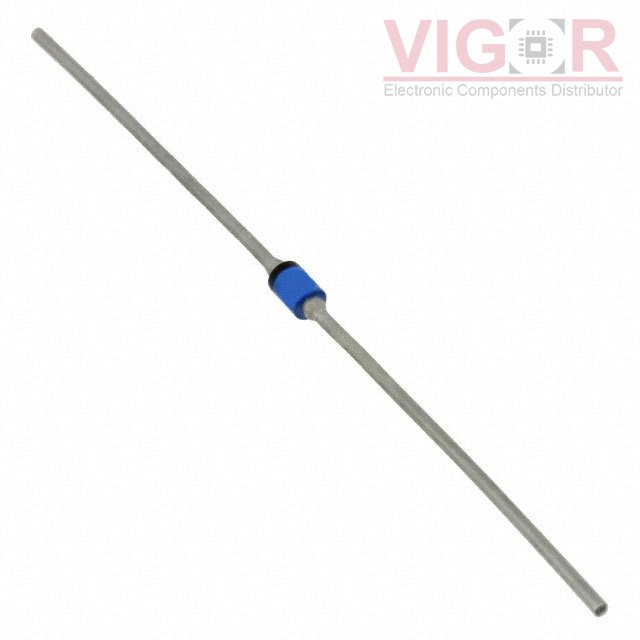

Image is for reference,
please contact us to get the real picture

Part No :: JAN1N4946

Manufacturer: Roving Networks / Microchip Technology

Description: DIODE GEN PURP 600V 1A AXIAL

Catalog: Diodes - Rectifiers - Single

DataSheet: JAN1N4946 PDF

Availability: 0 pieces

Unit Price: ~~$4.77102~~

Current price of JAN1N4946 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

JAN1N4946 Specifications

Type	Description
Series:	Military, MIL-PRF-19500/360
Package:	Bulk
Part Status:	Active
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	600 V
Current - Average Rectified (Io):	1A
Voltage - Forward (Vf) (Max) @ If:	1.3 V @ 1 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	250 ns
Current - Reverse Leakage @ Vr:	1 µA @ 600 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	A, Axial
Supplier Device Package:	-
Operating Temperature - Junction:	-65°C ~ 175°C

Please confirm the specifications of the products when ordering.
