SS0503EC-TR-H

SS0503EC-TR-H

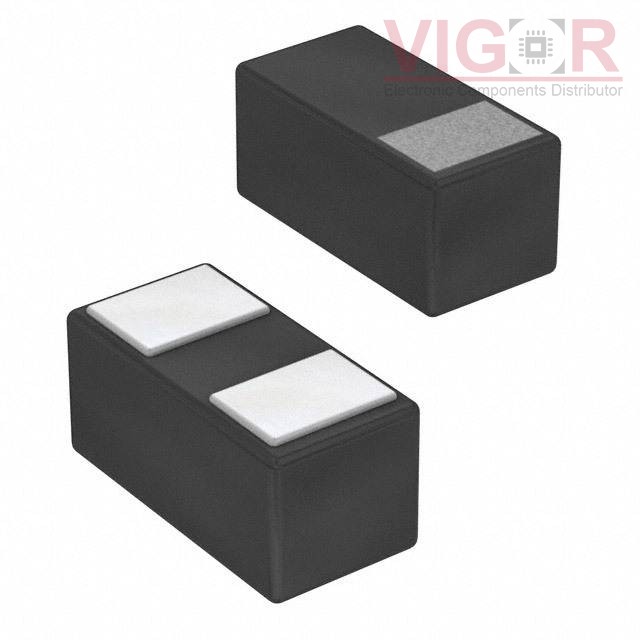

Image is for reference,
please contact us to get the real picture

Part No :

SS0503EC-TR-H

Manufacturer
VIGOR
Description
DIODE SCHOTTKY 30V 500MA 2ECSP
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Sep 30 - Oct 04 2025
DataSheet
SS0503EC-TR-H PDF
Availability
548300 pieces
Unit Price
$0.19000

Current price of SS0503EC-TR-H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SS0503EC-TR-H Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):30 V
Current - Average Rectified (Io):500mA
Voltage - Forward (Vf) (Max) @ If:560 mV @ 500 mA
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):10 ns
Current - Reverse Leakage @ Vr:100 µA @ 15 V
Capacitance @ Vr, F:6pF @ 10V, 1MHz
Mounting Type:Surface Mount
Package / Case:2-UDFN
Supplier Device Package:2-ECSP1008
Operating Temperature - Junction:-55°C ~ 125°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
