NTE109-5

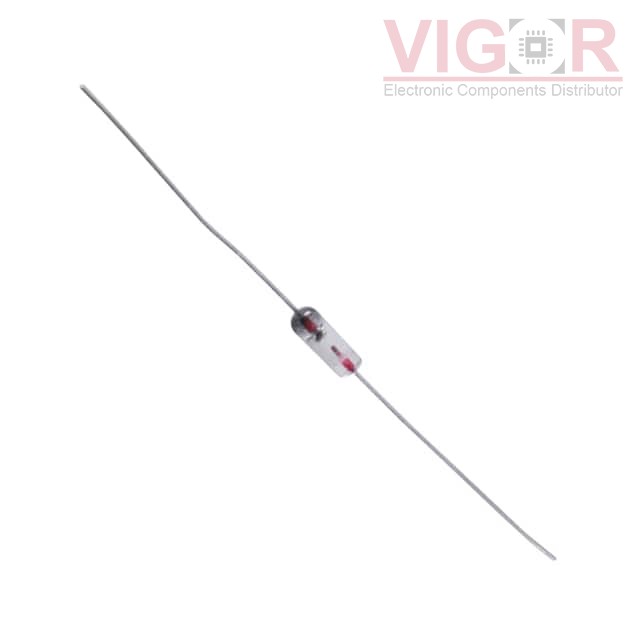

Image is for reference,
please contact us to get the real picture

Part No :: NTE109-5

Manufacturer: NTE Electronics, Inc.

Description: NTE109(5/PKG)

Catalog: Diodes - Rectifiers - Single

DataSheet: NTE109-5 PDF

Availability: 50 pieces

Unit Price: ~~$6.59000~~

Current price of NTE109-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NTE109-5 Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	100 V
Current - Average Rectified (Io):	40mA
Voltage - Forward (Vf) (Max) @ If:	1 V @ 200 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	100 µA @ 50 V
Capacitance @ Vr, F:	0.8pF @ 1V, 1MHz
Mounting Type:	Through Hole
Package / Case:	DO-204AA, DO-7, Axial
Supplier Device Package:	DO-7
Operating Temperature - Junction:	-65°C ~ 90°C
