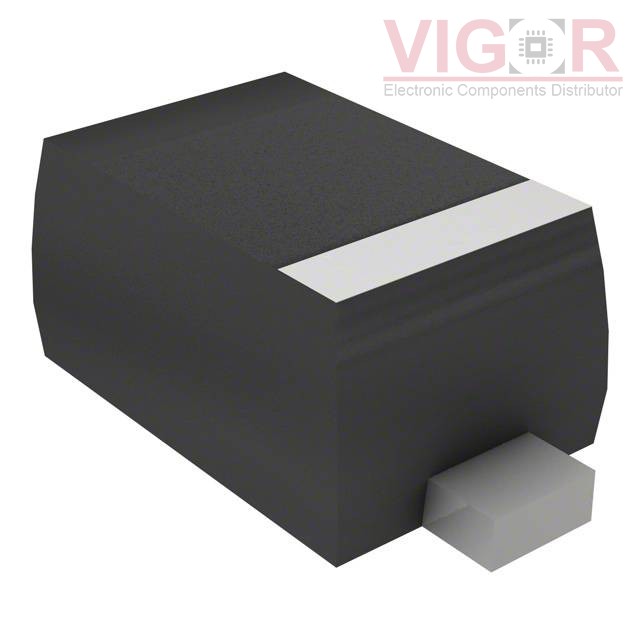

CES520,L3F

Part No :: CES520,L3F

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: DIODE SCHOTTKY 30V 200MA ESC

Catalog: Diodes - Rectifiers - Single

DataSheet: CES520,L3F PDF

Availability: 371 pieces

Unit Price: ~~$0.19000~~

Current price of CES520,L3F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CES520,L3F Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	30 V
Current - Average Rectified (Io):	200mA
Voltage - Forward (Vf) (Max) @ If:	600 mV @ 200 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	5 µA @ 30 V
Capacitance @ Vr, F:	17pF @ 0V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	SC-79, SOD-523
Supplier Device Package:	ESC
Operating Temperature - Junction:	125°C (Max)

Please confirm the specifications of the products when ordering.
