HS1KAL M3G

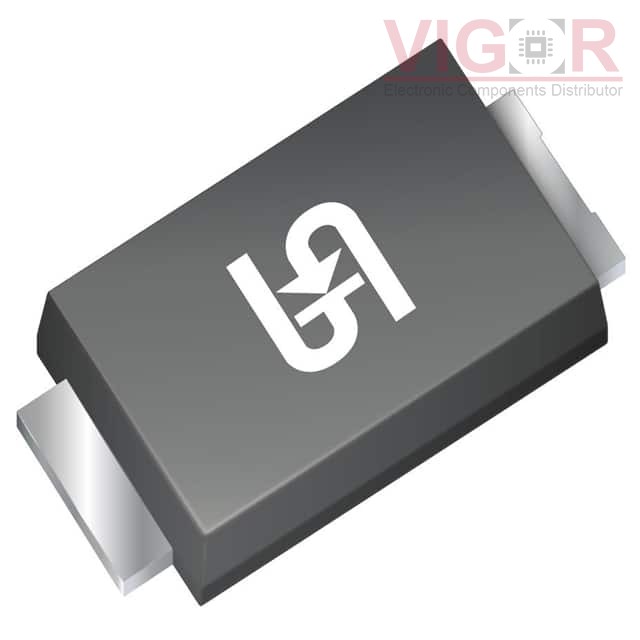

Image is for reference,
please contact us to get the real picture

Part No :: HS1KAL M3G

Manufacturer: TSC (Taiwan Semiconductor)

Description: 75NS, 1A, 800V, HIGH EFFICIENT R

Catalog: Diodes - Rectifiers - Single

DataSheet: HS1KAL M3G PDF

Availability: 7000 pieces

Unit Price: ~~$0.44000~~

Current price of HS1KAL M3G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HS1KAL M3G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	800 V
Current - Average Rectified (Io):	1A
Voltage - Forward (Vf) (Max) @ If:	1.7 V @ 1 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	75 ns
Current - Reverse Leakage @ Vr:	1 µA @ 800 V
Capacitance @ Vr, F:	8pF @ 4V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	DO-221AC, SMA Flat Leads
Supplier Device Package:	Thin SMA
Operating Temperature - Junction:	-55°C ~ 150°C
