BAV19WS-G RRG

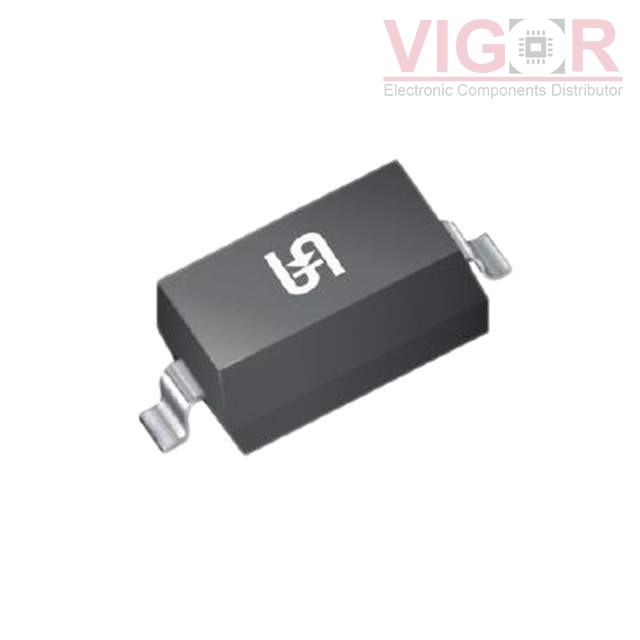

Image is for reference,
please contact us to get the real picture

Part No :: BAV19WS-G RRG

Manufacturer: TSC (Taiwan Semiconductor)

Description: DIODE GEN PURP 100V 200MA SOD323

Catalog: Diodes - Rectifiers - Single

DataSheet: BAV19WS-G RRG PDF

Availability: 0 pieces

Unit Price: ~~$0.04453~~

Current price of BAV19WS-G RRG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BAV19WS-G RRG Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	100 V
Current - Average Rectified (Io):	200mA
Voltage - Forward (Vf) (Max) @ If:	1.25 V @ 100 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	50 ns
Current - Reverse Leakage @ Vr:	100 nA @ 100 V
Capacitance @ Vr, F:	5pF @ 0V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	SC-76, SOD-323
Supplier Device Package:	SOD-323
Operating Temperature - Junction:	-65°C ~ 150°C
