V3PL45-M3/H

V3PL45-M3/H

Image is for reference,
please contact us to get the real picture

Part No :

V3PL45-M3/H

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
SCHOTTKY RECTIFIER 3A 45V SMP
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Oct 07 - Oct 11 2025
DataSheet
V3PL45-M3/H PDF
Availability
182 pieces
Unit Price
$0.38000

Current price of V3PL45-M3/H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

V3PL45-M3/H Specifications
Type Description
Series:Automotive, AEC-Q101, eSMP®, TMBS®
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):45 V
Current - Average Rectified (Io):3A (DC)
Voltage - Forward (Vf) (Max) @ If:540 mV @ 3 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:450 µA @ 45 V
Capacitance @ Vr, F:550pF @ 4V, 1MHz
Mounting Type:Surface Mount
Package / Case:DO-220AA
Supplier Device Package:DO-220AA (SMP)
Operating Temperature - Junction:-40°C ~ 150°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT US1AHM2G

US1AHM2G

DIODE GEN PURP 50V 1A DO214AC
HOT ER1M

ER1M

DIODE SFR SMA 1000V 1A

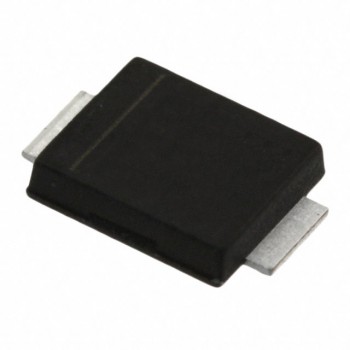

HOT STPS4S200UF
