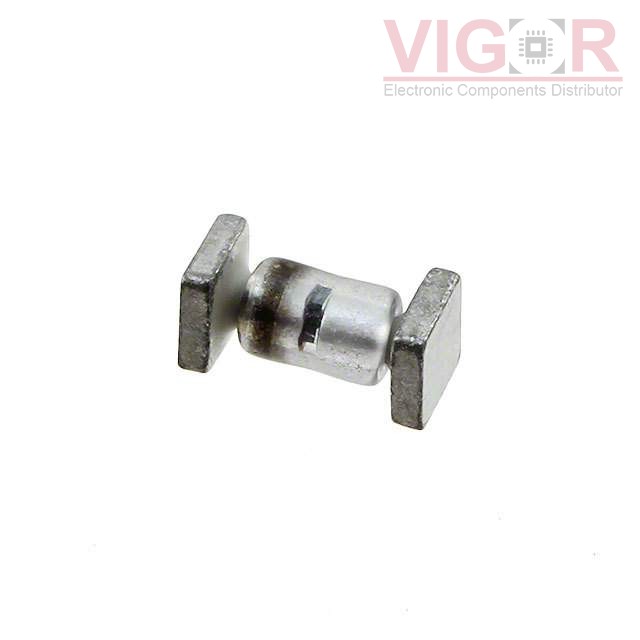

1N5820US

Image is for reference,
please contact us to get the real picture

Part No :

1N5820US

Manufacturer
Roving Networks / Microchip Technology
Description
DIODE SCHOTTKY 20V 3A B-MELF
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Oct 04 - Oct 08 2025
DataSheet
1N5820US PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 1N5820US is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Bulk
Part Status:Discontinued at Digi-Key
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):20 V
Current - Average Rectified (Io):3A
Voltage - Forward (Vf) (Max) @ If:500 mV @ 3 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:100 µA @ 20 V
Capacitance @ Vr, F:-
Mounting Type:Surface Mount
Package / Case:SQ-MELF, B
Supplier Device Package:B, SQ-MELF
Operating Temperature - Junction:-65°C ~ 125°C
