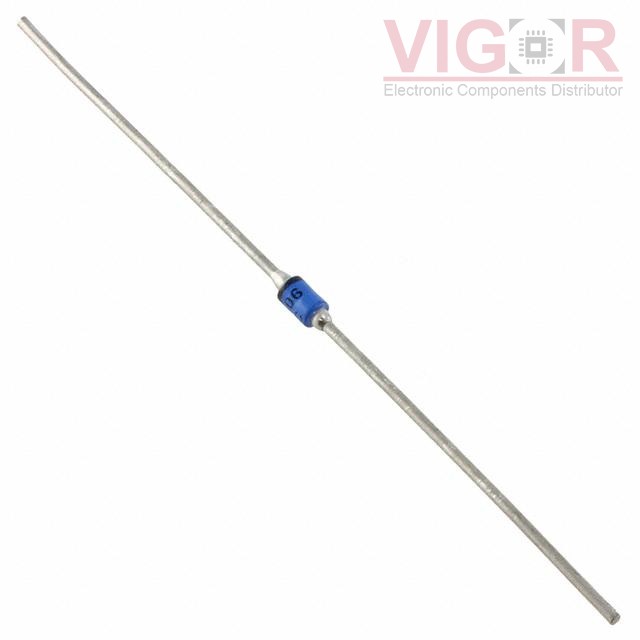

1N5803

Part No :: 1N5803

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 4594132

Description: DIODE GEN PURP 75V 1A AXIAL

Catalog: Diodes - Rectifiers - Single

DataSheet: 1N5803 PDF

Country of origin: -

Date code: -

1N5803 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	75 V
Current - Average Rectified (Io):	1A
Voltage - Forward (Vf) (Max) @ If:	875 mV @ 1 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	25 ns
Current - Reverse Leakage @ Vr:	1 µA @ 75 V
Capacitance @ Vr, F:	25pF @ 10V, 1MHz
Mounting Type:	Through Hole
Package / Case:	A, Axial
Supplier Device Package:	-
Operating Temperature - Junction:	-65°C ~ 175°C
