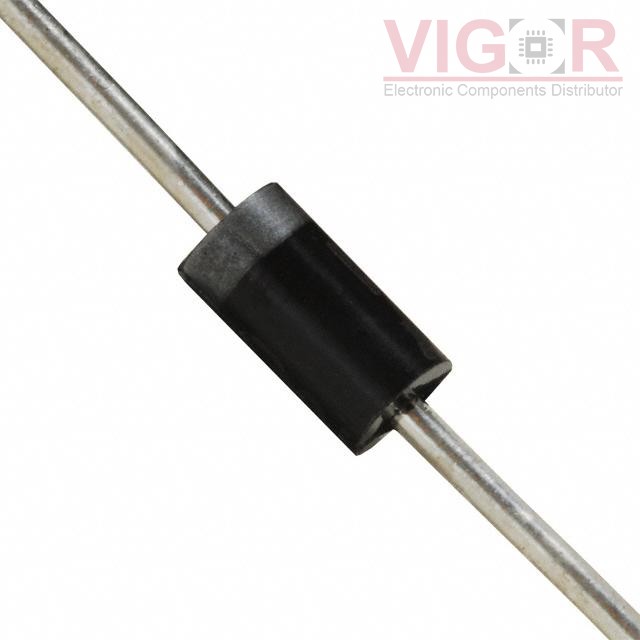

SB10-05A3-AT1

Part No :: SB10-05A3-AT1

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4596738

Description: DIODE SCHOTTKY 50V 1A DO41

Catalog: Diodes - Rectifiers - Single

DataSheet: SB10-05A3-AT1 PDF

Country of origin: -

Date code: -

SB10-05A3-AT1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	50 V
Current - Average Rectified (Io):	1A
Voltage - Forward (Vf) (Max) @ If:	580 mV @ 1 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	30 ns
Current - Reverse Leakage @ Vr:	1 mA @ 50 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	DO-204AL, DO-41, Axial
Supplier Device Package:	DO-41
Operating Temperature - Junction:	125°C (Max)
