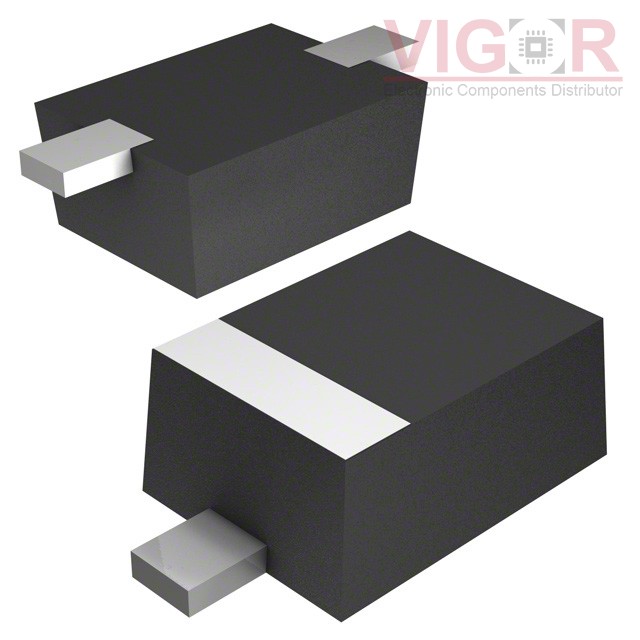

DB2J31000L

Part No :: DB2J31000L

Manufacturer: Panasonic

VIGOR # :: 4597234

Description: DIODE SCHOTTKY 30V 200MA SMINI2

Catalog: Diodes - Rectifiers - Single

DataSheet: DB2J31000L PDF

Country of origin: -

Date code: -

DB2J31000L Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Discontinued at Digi-Key
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	30 V
Current - Average Rectified (Io):	200mA
Voltage - Forward (Vf) (Max) @ If:	470 mV @ 200 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	1.6 ns
Current - Reverse Leakage @ Vr:	200 µA @ 30 V
Capacitance @ Vr, F:	4.5pF @ 10V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	SC-90, SOD-323F
Supplier Device Package:	SMini2-F5-B
Operating Temperature - Junction:	125°C (Max)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jun 02 - Jun 06 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of DB2J31000L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
