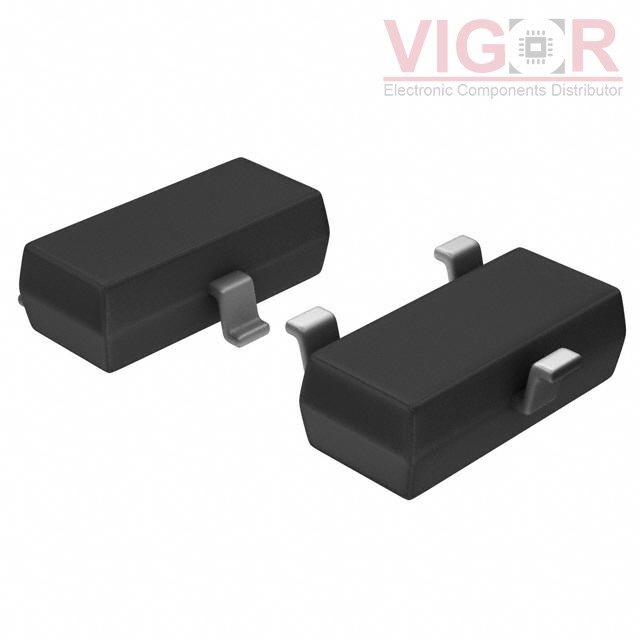

AZ23C22-E3-08

Part No :: AZ23C22-E3-08

Manufacturer: Vishay General Semiconductor – Diodes Division

VIGOR # :: 2985433

Description: DIODE ZENER 22V 300MW SOT23

Catalog: Diodes - Zener - Arrays

DataSheet: AZ23C22-E3-08 PDF

Country of origin: -

Date code: -

AZ23C22-E3-08 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Configuration:	1 Pair Common Anode
Voltage - Zener (Nom) (Vz):	22 V
Tolerance:	±5%
Power - Max:	300 mW
Impedance (Max) (Zzt):	55 Ohms
Current - Reverse Leakage @ Vr:	100 nA @ 17 V
Voltage - Forward (Vf) (Max) @ If:	-
Operating Temperature:	-55°C ~ 150°C
Mounting Type:	Surface Mount
Package / Case:	TO-236-3, SC-59, SOT-23-3
Supplier Device Package:	SOT-23
