TSZU52C20 RGG

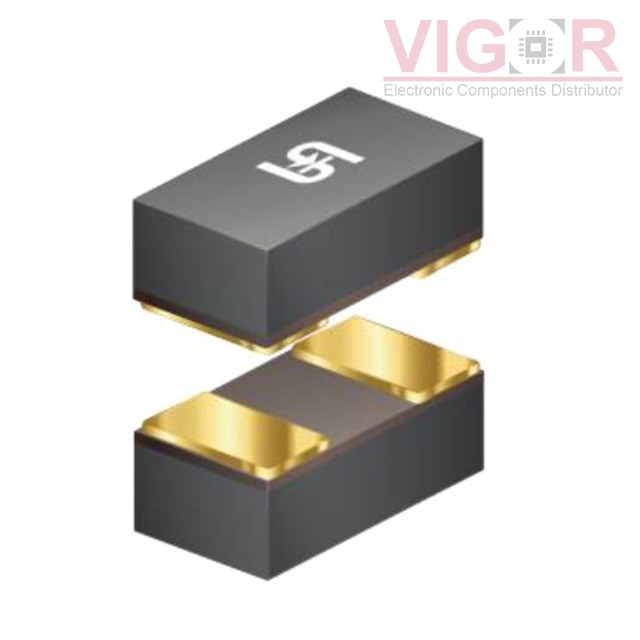

Image is for reference,
please contact us to get the real picture

Part No :: TSZU52C20 RGG

Manufacturer: TSC (Taiwan Semiconductor)

Description: DIODE ZENER 20V 150MW 0603

Catalog: Diodes - Zener - Single

DataSheet: TSZU52C20 RGG PDF

Availability: 0 pieces

Unit Price: ~~$0.04395~~

Current price of TSZU52C20 RGG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TSZU52C20 RGG Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Not For New Designs
Voltage - Zener (Nom) (Vz):	20 V
Tolerance:	±5%
Power - Max:	150 mW
Impedance (Max) (Zzt):	50 Ohms
Current - Reverse Leakage @ Vr:	100 nA @ 15 V
Voltage - Forward (Vf) (Max) @ If:	900 mV @ 10 mA
Operating Temperature:	-55°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603

Please confirm the specifications of the products when ordering.
