ZM4747A-GS08

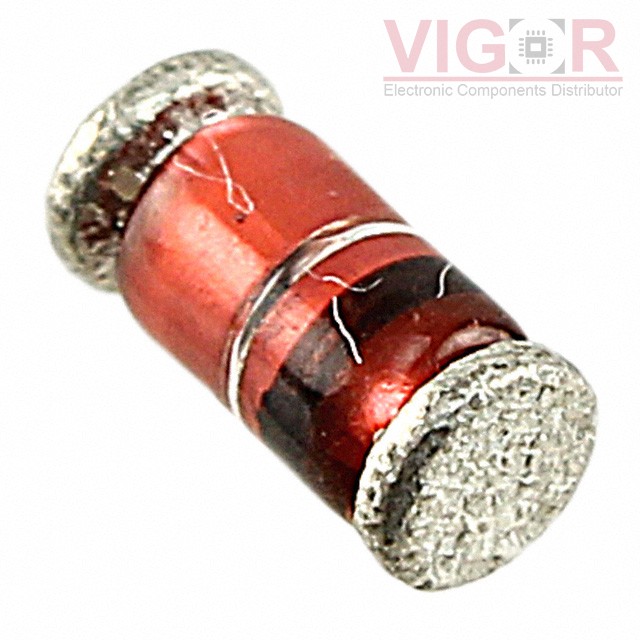

Image is for reference,
please contact us to get the real picture

Part No :: ZM4747A-GS08

Manufacturer: Vishay General Semiconductor – Diodes Division

Description: DIODE ZENER 20V 1W DO213AB

Catalog: Diodes - Zener - Single

DataSheet: ZM4747A-GS08 PDF

Availability: 14227 pieces

Unit Price: ~~$0.49000~~

Current price of ZM4747A-GS08 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ZM4747A-GS08 Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Voltage - Zener (Nom) (Vz):	20 V
Tolerance:	±5%
Power - Max:	1 W
Impedance (Max) (Zzt):	22 Ohms
Current - Reverse Leakage @ Vr:	5 µA @ 15.2 V
Voltage - Forward (Vf) (Max) @ If:	-
Operating Temperature:	175°C
Mounting Type:	Surface Mount
Package / Case:	DO-213AB, MELF (Glass)
Supplier Device Package:	DO-213AB

Please confirm the specifications of the products when ordering.
