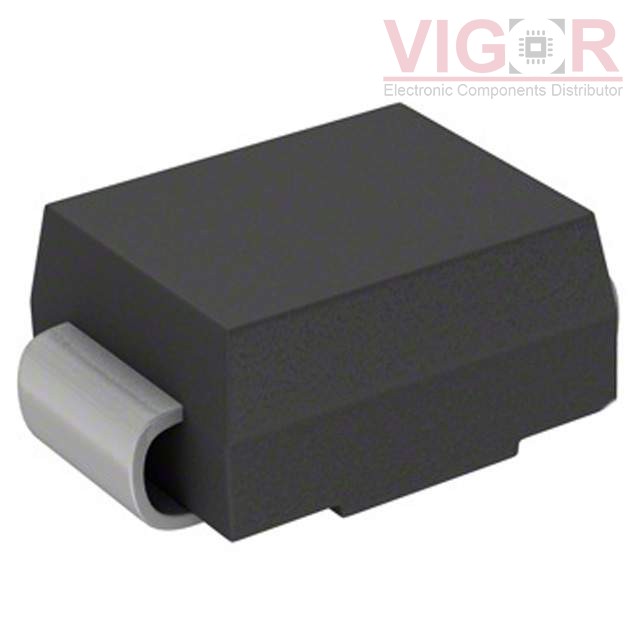

SMAZ22-13-F

Part No :: SMAZ22-13-F

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 2953421

Description: DIODE ZENER 22V 1W SMA

Catalog: Diodes - Zener - Single

DataSheet: SMAZ22-13-F PDF

Country of origin: -

Date code: -

SMAZ22-13-F Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Voltage - Zener (Nom) (Vz):	22 V
Tolerance:	±5%
Power - Max:	1 W
Impedance (Max) (Zzt):	15 Ohms
Current - Reverse Leakage @ Vr:	500 nA @ 16.7 V
Voltage - Forward (Vf) (Max) @ If:	1.2 V @ 200 mA
Operating Temperature:	-65°C ~ 150°C
Mounting Type:	Surface Mount
Package / Case:	DO-214AC, SMA
Supplier Device Package:	SMA
