HZ22BP-E

HZ22BP-E

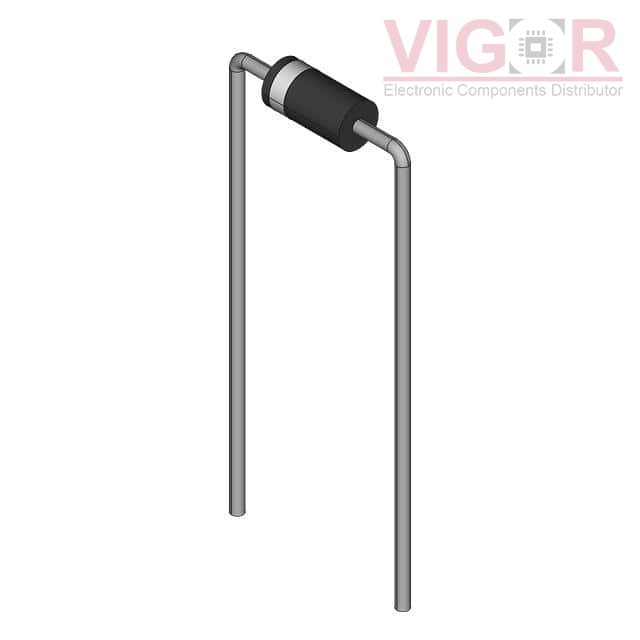

Image is for reference,
please contact us to get the real picture

Part No :

HZ22BP-E

Manufacturer
VIGOR
Description
DIODE ZENER 22V 1W DO41
Catalog
Diodes - Zener - Single
Shipped from
HK warehouse
Expected Shipping Date
Oct 16 - Oct 20 2025
DataSheet
HZ22BP-E PDF
Availability
7300 pieces
Unit Price
$0.07000

Current price of HZ22BP-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HZ22BP-E Specifications
Type Description
Series:HZ-P
Package:Bulk
Part Status:Active
Voltage - Zener (Nom) (Vz):22 V
Tolerance:±5.68%
Power - Max:1 W
Impedance (Max) (Zzt):14 Ohms
Current - Reverse Leakage @ Vr:10 µA @ 17 V
Voltage - Forward (Vf) (Max) @ If:-
Operating Temperature:175°C (TJ)
Mounting Type:Through Hole
Package / Case:DO-204AL, DO-41, Axial
Supplier Device Package:DO-41
