M5010012F

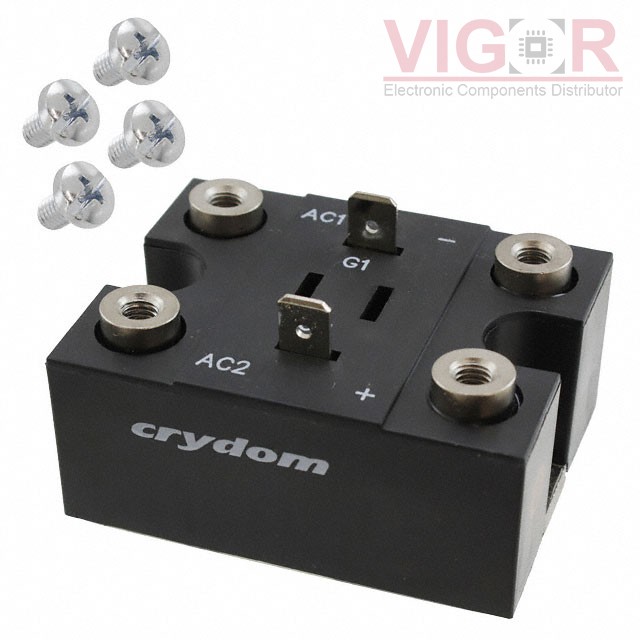

Image is for reference,
please contact us to get the real picture

Part No :: M5010012F

Manufacturer: Sensata Technologies – Crydom

Description: MODULE POWER 100A 600V SCR CC

Catalog: Thyristors - SCRs - Modules

DataSheet: M5010012F PDF

Availability: 0 pieces

Unit Price: ~~$142.03000~~

Current price of M5010012F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

M5010012F Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Structure:	Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes:	2 SCRs, 2 Diodes
Voltage - Off State:	600 V
Current - On State (It (AV)) (Max):	-
Current - On State (It (RMS)) (Max):	-
Voltage - Gate Trigger (Vgt) (Max):	3 V
Current - Gate Trigger (Igt) (Max):	150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	1500A @ 60Hz
Current - Hold (Ih) (Max):	-
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	Module
