TD500N12KOFHPSA2

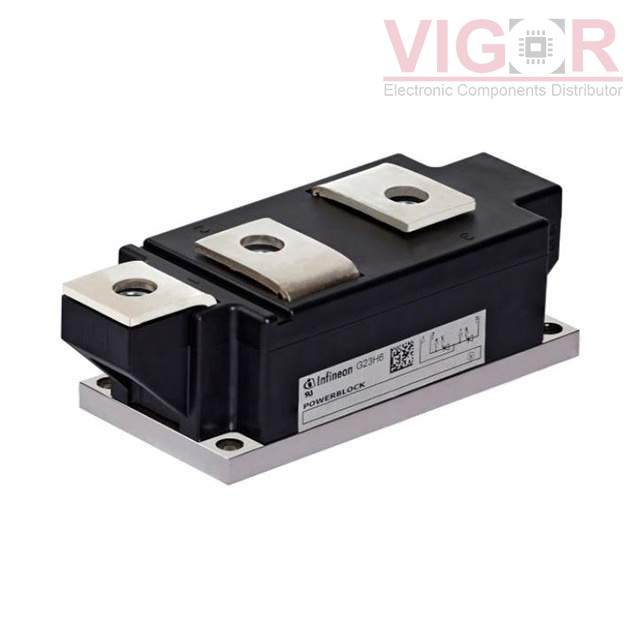

Image is for reference,
please contact us to get the real picture

Part No :: TD500N12KOFHPSA2

Manufacturer: IR (Infineon Technologies)

Description: SCR MODULE 1800V 900A MODULE

Catalog: Thyristors - SCRs - Modules

DataSheet: TD500N12KOFHPSA2 PDF

Availability: 0 pieces

Unit Price: ~~$267.47000~~

Current price of TD500N12KOFHPSA2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TD500N12KOFHPSA2 Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Structure:	Series Connection - SCR/Diode
Number of SCRs, Diodes:	1 SCR, 1 Diode
Voltage - Off State:	1.8 kV
Current - On State (It (AV)) (Max):	500 A
Current - On State (It (RMS)) (Max):	900 A
Voltage - Gate Trigger (Vgt) (Max):	2.2 V
Current - Gate Trigger (Igt) (Max):	250 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	17000A @ 50Hz
Current - Hold (Ih) (Max):	300 mA
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Chassis Mount
Package / Case:	Module
