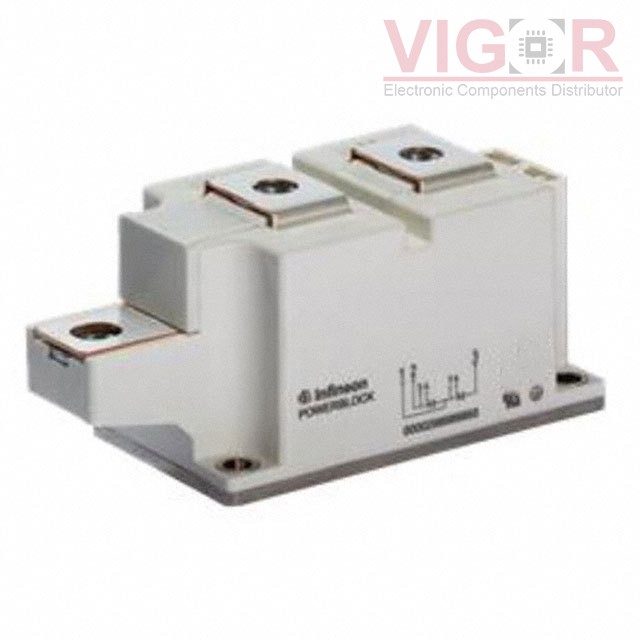

TD320N18SOFHPSA1

Image is for reference,
please contact us to get the real picture

Part No :: TD320N18SOFHPSA1

Manufacturer: IR (Infineon Technologies)

Description: SCR MODULE 1.8KV 520A MODULE

Catalog: Thyristors - SCRs - Modules

DataSheet: TD320N18SOFHPSA1 PDF

Availability: 3 pieces

Unit Price: ~~$88.10000~~

Current price of TD320N18SOFHPSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TD320N18SOFHPSA1 Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Structure:	Series Connection - SCR/Diode
Number of SCRs, Diodes:	1 SCR, 1 Diode
Voltage - Off State:	1.8 kV
Current - On State (It (AV)) (Max):	320 A
Current - On State (It (RMS)) (Max):	520 A
Voltage - Gate Trigger (Vgt) (Max):	2 V
Current - Gate Trigger (Igt) (Max):	150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	9500A @ 50Hz
Current - Hold (Ih) (Max):	150 mA
Operating Temperature:	-40°C ~ 130°C
Mounting Type:	Chassis Mount
Package / Case:	Module

Please confirm the specifications of the products when ordering.
