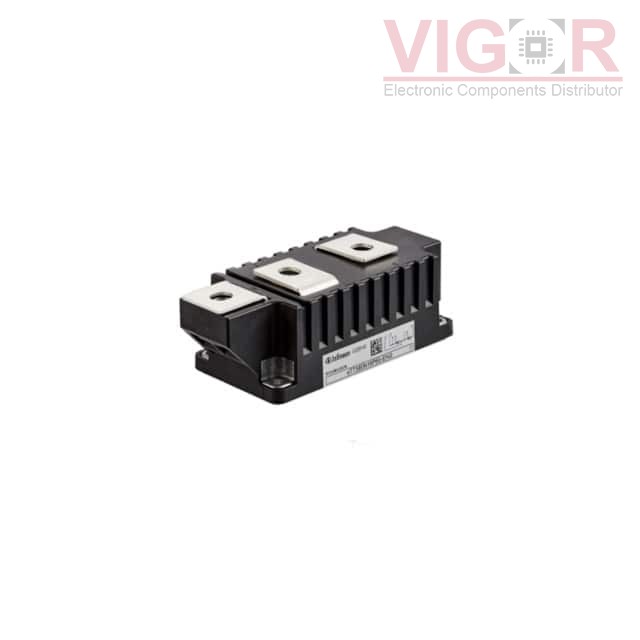

ETD580N16P60HPSA1

Image is for reference,
please contact us to get the real picture

Part No :: ETD580N16P60HPSA1

Manufacturer: VIGOR

Description: ETD580N16P60 - PHASE CONTROL THY

Catalog: Thyristors - SCRs - Modules

DataSheet: ETD580N16P60HPSA1 PDF

Availability: 2 pieces

Unit Price: ~~$172.26000~~

Current price of ETD580N16P60HPSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ETD580N16P60HPSA1 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Structure:	Series Connection - SCR/Diode
Number of SCRs, Diodes:	1 SCR, 1 Diode
Voltage - Off State:	1.6 kV
Current - On State (It (AV)) (Max):	586 A
Current - On State (It (RMS)) (Max):	700 A
Voltage - Gate Trigger (Vgt) (Max):	2 V
Current - Gate Trigger (Igt) (Max):	250 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	16500A @ 50Hz
Current - Hold (Ih) (Max):	300 mA
Operating Temperature:	-40°C ~ 135°C (TC)
Mounting Type:	Chassis Mount
Package / Case:	Module
