TZ740N22KOFTIMHPSA1

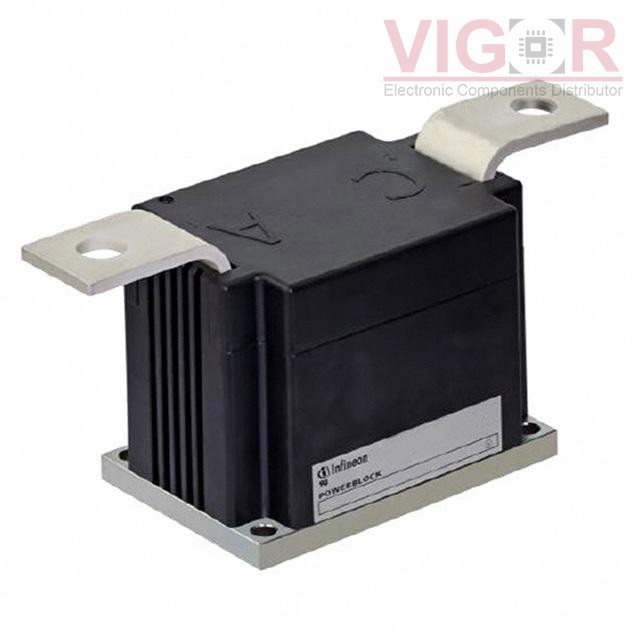

Image is for reference,
please contact us to get the real picture

Part No :: TZ740N22KOFTIMHPSA1

Manufacturer: IR (Infineon Technologies)

Description: SCR MODULE 2200V 1500A MODULE

Catalog: Thyristors - SCRs - Modules

DataSheet: TZ740N22KOFTIMHPSA1 PDF

Availability: 1 pieces

Unit Price: ~~$494.95000~~

Current price of TZ740N22KOFTIMHPSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TZ740N22KOFTIMHPSA1 Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Structure:	Single
Number of SCRs, Diodes:	1 SCR
Voltage - Off State:	2.2 kV
Current - On State (It (AV)) (Max):	819 A
Current - On State (It (RMS)) (Max):	1500 A
Voltage - Gate Trigger (Vgt) (Max):	2 V
Current - Gate Trigger (Igt) (Max):	250 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	30000A @ 50Hz
Current - Hold (Ih) (Max):	500 mA
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Chassis Mount
Package / Case:	Module
