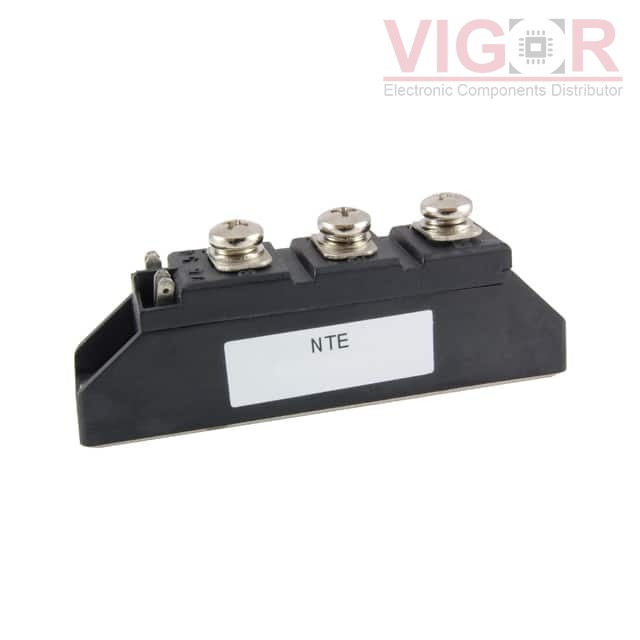

NTE5722

Part No :: NTE5722

Manufacturer: NTE Electronics, Inc.

Description: SCR 1200V 90A MODULE

Catalog: Thyristors - SCRs - Modules

DataSheet: NTE5722 PDF

Availability: 16 pieces

Unit Price: ~~$119.17000~~

Current price of NTE5722 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NTE5722 Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Structure:	Series Connection - SCR/Diode
Number of SCRs, Diodes:	1 SCR, 1 Diode
Voltage - Off State:	1.2 kV
Current - On State (It (AV)) (Max):	90 A
Current - On State (It (RMS)) (Max):	141 A
Voltage - Gate Trigger (Vgt) (Max):	2.5 V
Current - Gate Trigger (Igt) (Max):	100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	2000A @ 60Hz
Current - Hold (Ih) (Max):	100 mA
Operating Temperature:	-
Mounting Type:	Chassis Mount
Package / Case:	Module
