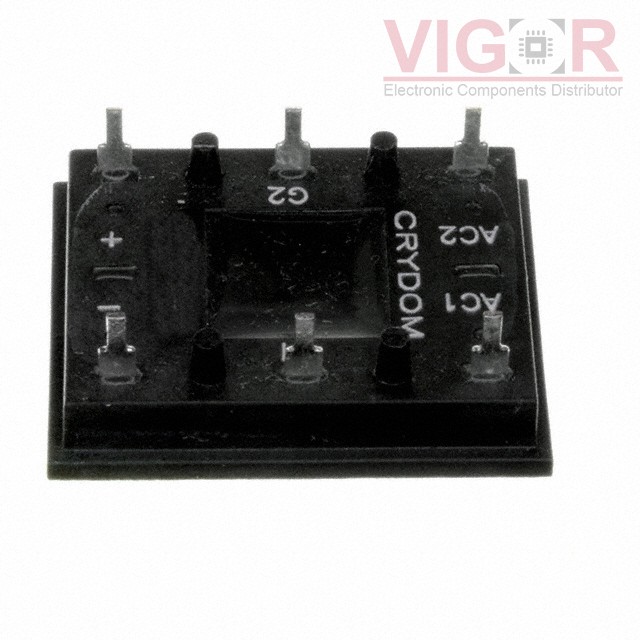

L513F

Part No :: L513F

Manufacturer: Sensata Technologies – Crydom

Description: MODULE SCR/DIODE 25A 280VAC PCB

Catalog: Thyristors - SCRs - Modules

DataSheet: L513F PDF

Availability: 0 pieces

Unit Price: ~~$82.15000~~

Current price of L513F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

L513F Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Structure:	Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes:	2 SCRs, 2 Diodes
Voltage - Off State:	800 V
Current - On State (It (AV)) (Max):	-
Current - On State (It (RMS)) (Max):	-
Voltage - Gate Trigger (Vgt) (Max):	3 V
Current - Gate Trigger (Igt) (Max):	100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	300A @ 60Hz
Current - Hold (Ih) (Max):	-
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Through Hole
Package / Case:	Module

Please confirm the specifications of the products when ordering.
