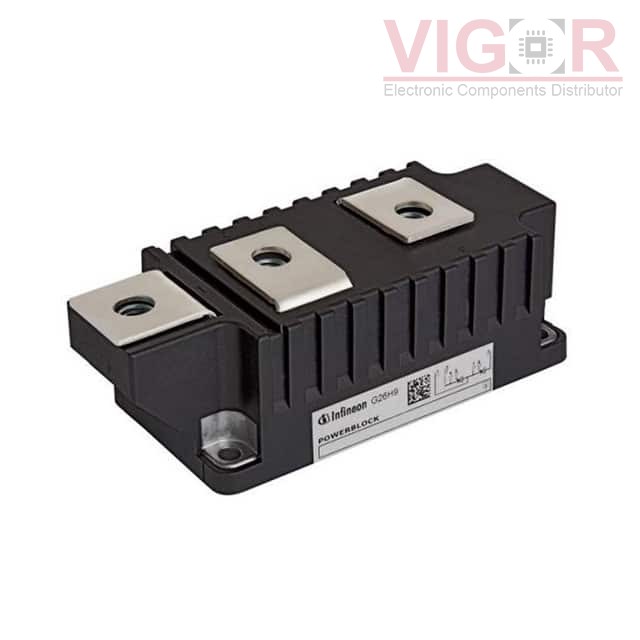

ETD540N22P60HPSA1

Part No :: ETD540N22P60HPSA1

Manufacturer: IR (Infineon Technologies)

Description: THYR / DIODE MODULE DK

Catalog: Thyristors - SCRs - Modules

DataSheet: ETD540N22P60HPSA1 PDF

Availability: 1 pieces

Unit Price: ~~$233.98000~~

Current price of ETD540N22P60HPSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ETD540N22P60HPSA1 Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Structure:	Series Connection - SCR/Diode
Number of SCRs, Diodes:	1 SCR, 1 Diode
Voltage - Off State:	2.2 kV
Current - On State (It (AV)) (Max):	542 A
Current - On State (It (RMS)) (Max):	700 A
Voltage - Gate Trigger (Vgt) (Max):	2.2 V
Current - Gate Trigger (Igt) (Max):	250 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	16300A @ 50Hz
Current - Hold (Ih) (Max):	300 mA
Operating Temperature:	-40°C ~ 135°C (TC)
Mounting Type:	Chassis Mount
Package / Case:	Module

Please confirm the specifications of the products when ordering.
