NTE5714

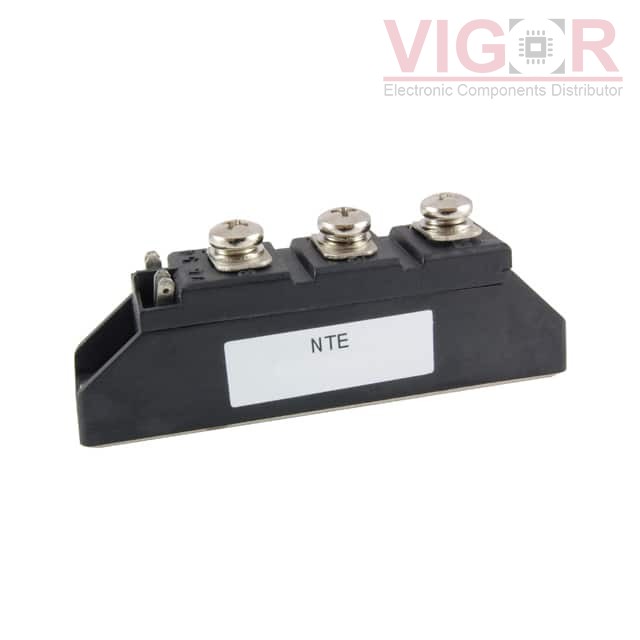

Image is for reference,
please contact us to get the real picture

Part No :: NTE5714

Manufacturer: NTE Electronics, Inc.

Description: SCR 1600V 65A MODULE

Catalog: Thyristors - SCRs - Modules

DataSheet: NTE5714 PDF

Availability: 16 pieces

Unit Price: ~~$96.50000~~

Current price of NTE5714 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NTE5714 Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Structure:	Series Connection - All SCRs
Number of SCRs, Diodes:	2 SCRs
Voltage - Off State:	1.6 kV
Current - On State (It (AV)) (Max):	70 A
Current - On State (It (RMS)) (Max):	-
Voltage - Gate Trigger (Vgt) (Max):	2.5 V
Current - Gate Trigger (Igt) (Max):	100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	1600A @ 60Hz
Current - Hold (Ih) (Max):	-
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	Module
